SV08-30 two-position three-way direct-acting solenoid valve

Working principle:

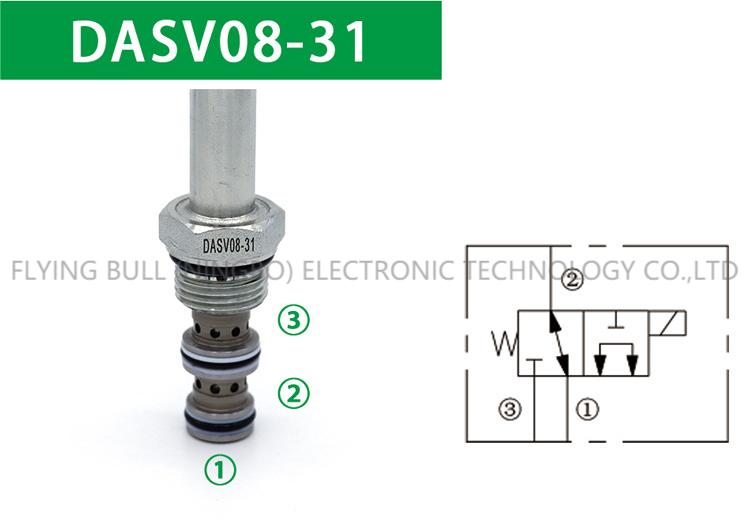

When power is cut off, DASV08-31 allows oil to flow from ② to ① and stop at ③. After electrifying, the valve core moves, thus connecting ① to ③ and stopping at ②. Operation method of emergency manual option: To carry out emergency operation, please press the button and release it after 180 counterclockwise rotation. The built-in spring will push the button out. In this position, the valve may only partially move. To ensure complete emergency movement, please pull the button to its maximum travel, and then keep it in this position. To restore the normal valve function, press the button and release it after rotating it 180 clockwise. The emergency manual option will be locked in this position.

The two-position three-way solenoid valve is controlled by two coils. One coil turns off the power supply and the valve opens after being energized instantly, and the other coil turns off the power supply and the valve closes after being energized instantaneously. Can be kept in the closed or open state for a long time, and can prolong the service life of the coil. It is best used in high temperature pipelines. It is widely used in metallurgy, petrochemical, pharmaceutical, tobacco, food and medical care, urban construction and environmental protection, water supply and drainage, heating and air conditioning, fire safety, scientific research, energy-saving industries and other fields.

The two-position three-way solenoid valve is controlled by two coils. One coil turns off the power supply and the valve opens after being energized instantly, and the other coil turns off the power supply and the valve closes after being energized instantaneously. Can be kept in the closed or open state for a long time, and can prolong the service life of the coil. It is best used in high temperature pipelines.
